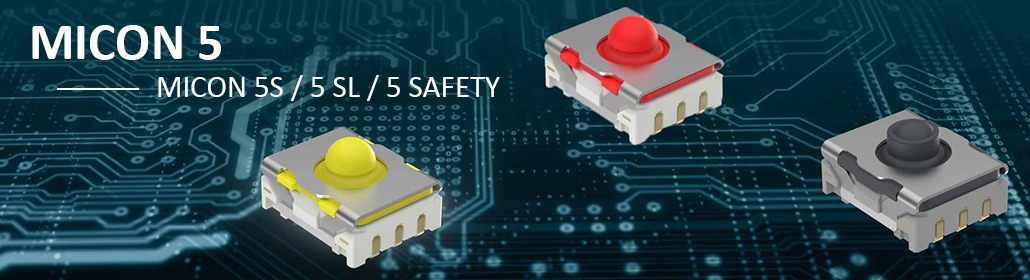

HMI switch MICON 5 now with dual circuit or fully sealed

The MICON 5 robust small tactile switch series from RAFI is now available with dual circuit, fully sealed and extended life versions. Due to their temperature resistance from -40 to +125°C, they are ideally suited for all human-machine applications.

All MICON 5 switches have a base of just 5.1 x 6.4 mm and a height of 3.85 mm and built-in gold contacts. Thanks to the increased IP protection class (MICON 5 S and SL), these switches can be used on PCBs that are made robust against environmental influences or contamination by means of conformal coating, potting or dip coating. The two potential-free separate NC and NO contacts (MICON 5 SAFETY) comply with all relevant safety standards and are unique for its size.

The MICON 5 series offers a range of accessories including round and square plungers in various dimensions and illumination variants, indicator fields for ring lighting, and bezels in all basic colors.

	MICON 5 SAFETY: dual circuit 1 NC and 1 NO contact, isolated IP54 and/or IPx7 Up to 1,000,000 cycle lifetime Actuating forces: 2.9 or 5.6 N SMT terminals Complies to all relevant industrial safety standards

	MICON 5 S: Sealed 1 NO contact IP67 Up to 1,000,000 cycle lifetime Different actuating forces: 1.5 to 7.0 N SMT/ THT terminals Various lengths, forms, and illumination options

	MICON 5 SL: Sealed and long life Increased lifetime (target 10 Mio.) 1 NO contact IP67 Actuating forces: 2.5 or 5.0N SMT terminals Ideal for joysticks
